TrendMicro Cloud Edge CE100s G2 で遊べなかった記録
元ネタを見てProxmox VE 8.1を入れて遊べると思いきや意外と遊ぶのが難しい。ってか遊べてない🥺
誰か！！！！助けてくれ！！！！
必要なら元のSSDからぶち抜いたboot.tgzとfactory.tgz等送るから！！！！！
ネットワークアダプタ
こいつが一番鬼門
root@pve1:~# lspci -nn 00:00.0 Host bridge [0600]: Intel Corporation Atom Processor C3000 Series System Agent [8086:1980] (rev 11) 00:04.0 Host bridge [0600]: Intel Corporation Atom Processor C3000 Series Error Registers [8086:19a1] (rev 11) 00:05.0 Generic system peripheral [0807]: Intel Corporation Atom Processor C3000 Series Root Complex Event Collector [8086:19a2] (rev 11) 00:06.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series Integrated QAT Root Port [8086:19a3] (rev 11) 00:09.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #0 [8086:19a4] (rev 11) 00:0b.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #2 [8086:19a6] (rev 11) 00:0c.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #3 [8086:19a7] (rev 11) 00:0e.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #4 [8086:19a8] (rev 11) 00:0f.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series PCI Express Root Port #5 [8086:19a9] (rev 11) 00:12.0 System peripheral [0880]: Intel Corporation Atom Processor C3000 Series SMBus Contoller - Host [8086:19ac] (rev 11) 00:13.0 SATA controller [0106]: Intel Corporation Atom Processor C3000 Series SATA Controller 0 [8086:19b2] (rev 11) 00:15.0 USB controller [0c03]: Intel Corporation Atom Processor C3000 Series USB 3.0 xHCI Controller [8086:19d0] (rev 11) 00:16.0 PCI bridge [0604]: Intel Corporation Atom Processor C3000 Series Integrated LAN Root Port #0 [8086:19d1] (rev 11) 00:18.0 Communication controller [0780]: Intel Corporation Atom Processor C3000 Series ME HECI 1 [8086:19d3] (rev 11) 00:1c.0 SD Host controller [0805]: Intel Corporation Device [8086:19db] (rev 11) 00:1f.0 ISA bridge [0601]: Intel Corporation Atom Processor C3000 Series LPC or eSPI [8086:19dc] (rev 11) 00:1f.2 Memory controller [0580]: Intel Corporation Atom Processor C3000 Series Power Management Controller [8086:19de] (rev 11) 00:1f.4 SMBus [0c05]: Intel Corporation Atom Processor C3000 Series SMBus controller [8086:19df] (rev 11) 00:1f.5 Serial bus controller [0c80]: Intel Corporation Atom Processor C3000 Series SPI Controller [8086:19e0] (rev 11) 01:00.0 Co-processor [0b40]: Intel Corporation Atom Processor C3000 Series QuickAssist Technology [8086:19e2] (rev 11) 05:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03) 06:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03) 07:00.0 Ethernet controller [0200]: Intel Corporation Ethernet Connection X553 Backplane [8086:15c2] (rev 11) 07:00.1 Ethernet controller [0200]: Intel Corporation Ethernet Connection X553 Backplane [8086:15c2] (rev 11)
- aewinというカーネルモジュールがGPIO等固有部分を制御してるっぽい

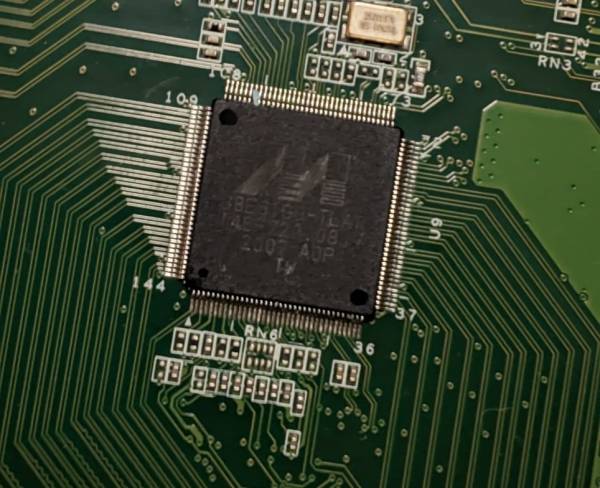

- 上記のうちX553 Backplane×2がMarvell 88E6190経由でGbe×8に接続されている。
- LANポートがまともに初期化されていない状態ではL2スイッチとして機能する。その状態でIPアドレス割り当ててifupしてもも通信できない
- ↑はProxmox VE 8.1で使用されているLinux Kernel 6.xのixgbeドライバが腐っている疑いあり。dkmsで独自ドライバ入れて試行錯誤中。 https://forum.proxmox.com/threads/intel-x553-sfp-ixgbe-no-go-on-pve8.135129/
- ドライバを入れたところnicに割り当てたIPアドレスに対して受信できたが送信はできない。要再調査

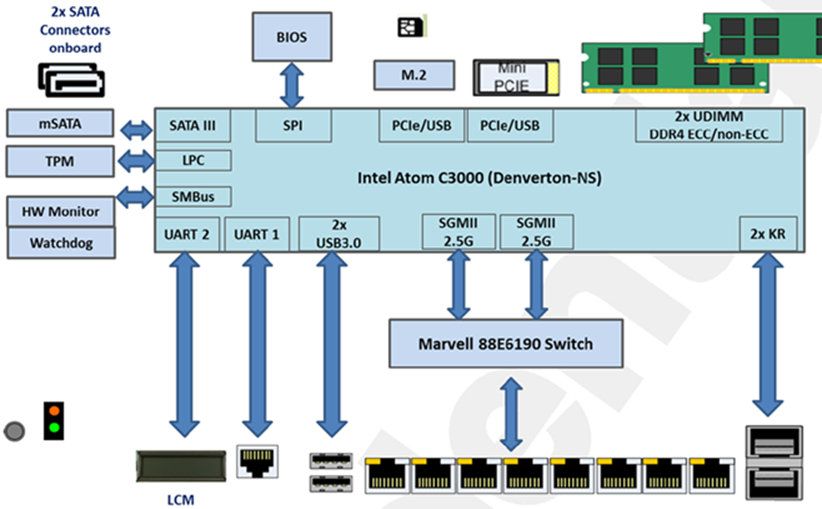

構造が近いデバイスのブロック図
I211 はただのI211なのでどうにでもなる
固有部分に関係してそうなパッケージ
- ググっても当然情報はありません！！！！！！！ソースコードよこせ！！！！！！GPLだろ！！！！！
- /root/install.log から抜粋
Installing kernel-3.10.0-514.OpenVA.5.6.1016.el7.x86_64 Installing mv88e6190-drv-kmod-5.6-1016.el7.centos.x86_64 Installing ixgbe-5.6-1016.el7.centos.x86_64 mv: cannot stat `/lib/modules/3.10.0-514.OpenVA.5.6.1016.el7.x86_64/extra/ixgbe.ko': No such file or directory Installing dsa-drv-kmod-5.6-1016.el7.centos.x86_64 Installing igb-5.6-1016.el7.centos.x86_64 Installing aewin-kmod-5.6-1016.el7.centos.x86_64 Installing ctmnfq-kmod-5.6-1016.el7.centos.x86_64 Installing openva-usbconf-tools-1.0.0-1.el6.x86_64
dmidecode
root@pve1:~# dmidecode
# dmidecode 3.4
Getting SMBIOS data from sysfs.
SMBIOS 3.0.0 present.
Table at 0x7F220000.
Handle 0x0000, DMI type 0, 24 bytes
BIOS Information
Vendor: American Megatrends Inc.
Version: 5.13
Release Date: 04/29/2019
Address: 0xF0000
Runtime Size: 64 kB
ROM Size: 8 MB
Characteristics:
PCI is supported
BIOS is upgradeable
BIOS shadowing is allowed
Boot from CD is supported
Selectable boot is supported
BIOS ROM is socketed
EDD is supported
5.25"/1.2 MB floppy services are supported (int 13h)
3.5"/720 kB floppy services are supported (int 13h)
3.5"/2.88 MB floppy services are supported (int 13h)
Print screen service is supported (int 5h)
Serial services are supported (int 14h)
Printer services are supported (int 17h)
ACPI is supported
USB legacy is supported
BIOS boot specification is supported
Targeted content distribution is supported
UEFI is supported
BIOS Revision: 5.13
Handle 0x0001, DMI type 1, 27 bytes
System Information
Manufacturer: Lanner Electronics
Product Name: NCA-2011Z-TM2J
Version: Default string
Serial Number: Default string
UUID: 03000200-0400-0500-0006-000700080009
Wake-up Type: Power Switch
SKU Number: Default string
Family: Default string
Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
Manufacturer: Default string
Product Name: Default string
Version: Default string
Serial Number: Default string
Asset Tag: Default string
Features:
Board is a hosting board
Board is replaceable
Location In Chassis: Default string
Chassis Handle: 0x0003
Type: Motherboard
Contained Object Handles: 0
Handle 0x0003, DMI type 3, 22 bytes
Chassis Information
Manufacturer: Default string
Type: Desktop
Lock: Not Present
Version: Default string
Serial Number: Default string
Asset Tag: Default string
Boot-up State: Safe
Power Supply State: Safe
Thermal State: Safe
Security Status: None
OEM Information: 0x00000000
Height: Unspecified
Number Of Power Cords: 1
Contained Elements: 0
SKU Number: Default string
Handle 0x0004, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1A1
Internal Connector Type: None
External Reference Designator: PS2Mouse
External Connector Type: PS/2
Port Type: Mouse Port
Handle 0x0005, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1A1
Internal Connector Type: None
External Reference Designator: Keyboard
External Connector Type: PS/2
Port Type: Keyboard Port
Handle 0x0006, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A1
Internal Connector Type: None
External Reference Designator: TV Out
External Connector Type: Mini Centronics Type-14
Port Type: Other
Handle 0x0007, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A2A
Internal Connector Type: None
External Reference Designator: COM A
External Connector Type: DB-9 male
Port Type: Serial Port 16550A Compatible
Handle 0x0008, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A2B
Internal Connector Type: None
External Reference Designator: Video
External Connector Type: DB-15 female
Port Type: Video Port
Handle 0x0009, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB1
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000A, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB2
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000B, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB3
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000C, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9A1 - TPM HDR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000D, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9C1 - PCIE DOCKING CONN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000E, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2B3 - CPU FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000F, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J6C2 - EXT HDMI
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0010, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3C1 - GMCH FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0011, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1D1 - ITP
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0012, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E2 - MDC INTPSR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0013, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E4 - MDC INTPSR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0014, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E3 - LPC HOT DOCKING
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0015, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E1 - SCAN MATRIX
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0016, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9G1 - LPC SIDE BAND
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0017, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J8F1 - UNIFIED
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0018, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J6F1 - LVDS
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0019, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2F1 - LAI FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001A, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2G1 - GFX VID
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001B, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1G6 - AC JACK
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001C, DMI type 9, 17 bytes
System Slot Information
Designation: J6B2
Type: x16 PCI Express
Current Usage: In Use
Length: Long
ID: 0
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:01.0
Handle 0x001D, DMI type 9, 17 bytes
System Slot Information
Designation: J6B1
Type: x1 PCI Express
Current Usage: In Use
Length: Short
ID: 1
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.3
Handle 0x001E, DMI type 9, 17 bytes
System Slot Information
Designation: J6D1
Type: x1 PCI Express
Current Usage: In Use
Length: Short
ID: 2
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.4
Handle 0x001F, DMI type 9, 17 bytes
System Slot Information
Designation: J7B1
Type: x1 PCI Express
Current Usage: In Use
Length: Short
ID: 3
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.5
Handle 0x0020, DMI type 9, 17 bytes
System Slot Information
Designation: J8B4
Type: x1 PCI Express
Current Usage: In Use
Length: Short
ID: 4
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.6
Handle 0x0021, DMI type 10, 6 bytes
On Board Device Information
Type: Video
Status: Enabled
Description: To Be Filled By O.E.M.
Handle 0x0022, DMI type 11, 5 bytes
OEM Strings
String 1: Default string
Handle 0x0023, DMI type 12, 5 bytes
System Configuration Options
Option 1: Default string
Handle 0x0024, DMI type 32, 20 bytes
System Boot Information
Status: No errors detected
Handle 0x0025, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard IGD
Type: Video
Status: Enabled
Type Instance: 1
Bus Address: 0000:00:02.0
Handle 0x0026, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard LAN
Type: Ethernet
Status: Enabled
Type Instance: 1
Bus Address: 0000:00:19.0
Handle 0x0027, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard 1394
Type: Other
Status: Enabled
Type Instance: 1
Bus Address: 0000:03:1c.2
Handle 0x0028, DMI type 16, 23 bytes
Physical Memory Array
Location: System Board Or Motherboard
Use: System Memory
Error Correction Type: None
Maximum Capacity: 128 GB
Error Information Handle: Not Provided
Number Of Devices: 4
Handle 0x0029, DMI type 19, 31 bytes
Memory Array Mapped Address
Starting Address: 0x00000000000
Ending Address: 0x001FFFFFFFF
Range Size: 8 GB
Physical Array Handle: 0x0028
Partition Width: 1
Handle 0x002A, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0028
Error Information Handle: Not Provided
Total Width: 8 bits
Data Width: 8 bits
Size: 8 GB
Form Factor: DIMM
Set: None
Locator: DIMM0
Bank Locator: BANK 0
Type: DDR4
Type Detail: Synchronous Unbuffered (Unregistered)
Speed: 2666 MT/s
Manufacturer: A-DATA
Serial Number: A4A60000
Asset Tag: BANK 0 DIMM0 AssetTag
Part Number:
Rank: 1
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Handle 0x002B, DMI type 20, 35 bytes
Memory Device Mapped Address
Starting Address: 0x00000000000
Ending Address: 0x001FFFFFFFF
Range Size: 8 GB
Physical Device Handle: 0x002A
Memory Array Mapped Address Handle: 0x0029
Partition Row Position: Unknown
Handle 0x002C, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0028
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: DIMM0
Bank Locator: BANK 1
Type: Unknown
Type Detail: Unknown
Handle 0x002D, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0028
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: DIMM1
Bank Locator: BANK 0
Type: Unknown
Type Detail: Unknown
Handle 0x002E, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0028
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: DIMM1
Bank Locator: BANK 1
Type: Unknown
Type Detail: Unknown
Handle 0x002F, DMI type 7, 19 bytes
Cache Information
Socket Designation: L1-Cache
Configuration: Enabled, Not Socketed, Level 1
Operational Mode: Write Back
Location: Internal
Installed Size: 56 kB
Maximum Size: 56 kB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Instruction
Associativity: 8-way Set-associative
Handle 0x0030, DMI type 7, 19 bytes
Cache Information
Socket Designation: L2-Cache
Configuration: Enabled, Not Socketed, Level 2
Operational Mode: Write Back
Location: Internal
Installed Size: 2 MB
Maximum Size: 2 MB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 16-way Set-associative
Handle 0x0031, DMI type 4, 48 bytes
Processor Information
Socket Designation: CPU0
Type: Central Processor
Family: Pentium 4
Manufacturer: Intel(R) Corporation
ID: F1 06 05 00 FF FB EB BF
Signature: Type 0, Family 6, Model 95, Stepping 1
Flags:
FPU (Floating-point unit on-chip)
VME (Virtual mode extension)
DE (Debugging extension)
PSE (Page size extension)
TSC (Time stamp counter)
MSR (Model specific registers)
PAE (Physical address extension)
MCE (Machine check exception)
CX8 (CMPXCHG8 instruction supported)
APIC (On-chip APIC hardware supported)
SEP (Fast system call)
MTRR (Memory type range registers)
PGE (Page global enable)
MCA (Machine check architecture)
CMOV (Conditional move instruction supported)
PAT (Page attribute table)
PSE-36 (36-bit page size extension)
CLFSH (CLFLUSH instruction supported)
DS (Debug store)
ACPI (ACPI supported)
MMX (MMX technology supported)
FXSR (FXSAVE and FXSTOR instructions supported)
SSE (Streaming SIMD extensions)
SSE2 (Streaming SIMD extensions 2)
SS (Self-snoop)
HTT (Multi-threading)
TM (Thermal monitor supported)
PBE (Pending break enabled)
Version: Intel(R) Atom(TM) CPU C3558 @ 2.20GHz
Voltage: 1.6 V
External Clock: 100 MHz
Max Speed: 3800 MHz
Current Speed: 2200 MHz
Status: Populated, Enabled
Upgrade: Socket LGA775
L1 Cache Handle: 0x002F
L2 Cache Handle: 0x0030
L3 Cache Handle: Not Provided
Serial Number: Not Specified
Asset Tag: UNKNOWN
Part Number: Not Specified
Core Count: 4
Core Enabled: 4
Thread Count: 4
Characteristics:
64-bit capable
Multi-Core
Hardware Thread
Execute Protection
Enhanced Virtualization
Power/Performance Control
Handle 0x0034, DMI type 127, 4 bytes
End Of Table
88E6190をethに見せかけるコードだと思う
/usr/vtm/scripts/switch.sh
#!/bin/sh # chkconfig: 0123456 03 90 # description: Switch services # processname: /etc/init.d/rcSwitch lockfile=/var/lock/subsys/rcSwitch PRODUCT=`sudo dmidecode -s system-product-name | grep '^[^#]'` start() { ifconfig inner0 up ifconfig inner1 up sudo ethtool -K inner0 gro off sudo ethtool -K inner0 gso off sudo ethtool -K inner1 gro off sudo ethtool -K inner1 gso off sudo modprobe dsa-drv sudo modprobe mv88e6190-drv --force } stop() { return } floodoff() { sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth5/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth7/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth6/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth8/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth1/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth2/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth4/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 0 > /sys/devices/virtual/net/eth3/brport/unicast_flood" >/dev/null 2>&1 } floodon() { sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth5/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth7/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth6/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth8/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth1/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth2/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth4/brport/unicast_flood" >/dev/null 2>&1 sudo /bin/sh -c "echo 1 > /sys/devices/virtual/net/eth3/brport/unicast_flood" >/dev/null 2>&1 } if [ "$PRODUCT" != "NCA-2011Z-TM2J" -a "$PRODUCT" != "NCA-2011Z-TM2E" -a "$PRODUCT" != "NCA-2011Z-TM3J" -a "$PRODUCT" != "NCA-2011Z-TM3E" ]; then exit 0 fi case "$1" in start) sudo touch $lockfile start ;; stop) sudo rm -f $lockfile stop ;; floodoff) floodoff ;; floodon) floodon ;; *) echo "usage : $0 start|stop" exit 1 ;; esac
Cloud Edge 型番一覧
def init(type=""): hardwareType = subprocess.check_output(['sudo', '/usr/sbin/dmidecode', '-s', 'system-product-name']) if hardwareType.find("SCB-6982A-TM2") != -1: init_device_type_ce100(type) elif hardwareType.find("SCB-6981A-TM1") != -1: init_device_type_ce50(type) elif hardwareType.find("CB-6985") != -1: init_device_type_ce50w(type) elif hardwareType.find("Express5800/GT110g-S") != -1: init_device_type_ce300(type) elif hardwareType.find("NCA-1011Z-TM1E") != -1: init_device_type_ce70e(type) elif hardwareType.find("NCA-1011Z-TM1") != -1: init_device_type_ce70(type) elif hardwareType.find("NCA-1011Z-TM2E") != -1: init_device_type_ce50e(type) elif hardwareType.find("NCA-1011Z-TM2") != -1: init_device_type_ce50(type) elif hardwareType.find("NCA-1011Z-TM3J") != -1: init_device_type_cesb(type) elif hardwareType.find("NCA-1011Z-TM3E") != -1: init_device_type_cesbe(type) elif hardwareType.find("NCA-1020Z-TM3") != -1: init_device_type_cesbwe(type) elif hardwareType.find("NCA-2011Z-TM1J") != -1: init_device_type_ce150(type) elif hardwareType.find("NCA-2011Z-TM1E") != -1: init_device_type_ce150e(type) elif hardwareType.find("NCA-2011Z-TM2J") != -1: init_device_type_ce100g2(type) elif hardwareType.find("NCA-2011Z-TM2E") != -1: init_device_type_ce100g2e(type) elif hardwareType.find("NCA-2011Z-TM3J") != -1: init_device_type_ce70g2(type) elif hardwareType.find("Express5800/T110g-S [N8100-2161Y]") != -1: lanbypass = os.popen("/usr/vtm/scripts/lanbypassd.sh get_type").read() if lanbypass.find("silicom-generic") != -1: init_device_type_ce300v2(type) else: init_device_type_ce300(type)
